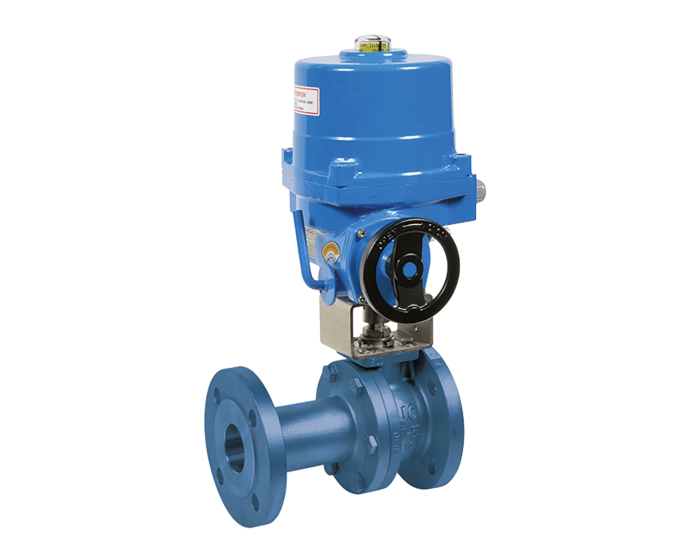

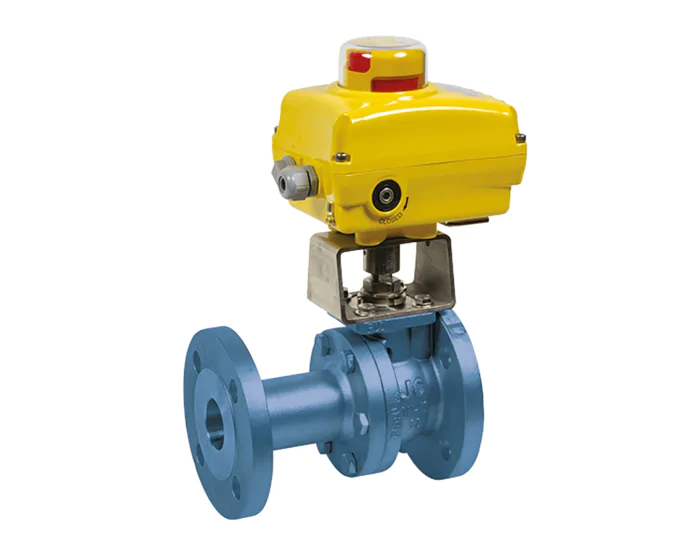

The JC 340 AICG ball valve has a 1.0619 carbon steel body, stainless steel ball and PTFE/graphite seats. It is actuated with an SA/NA electric actuator. PS: 40 bar, TS: 260°C. Flanges PN40 RF.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 316 |
| Manual override | By handwheel |
| Declutchable | Yes |
| DN | DN65 - 2''1/2 |
| Duty service | S2 duty service - 70% |
| Face to Face (mm) | 290.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 16 |
| Power (W) | 25 |
| Connections | Flanged PN16 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | NA 09 |
| Electric actuator series | SA/NA series |
| Seats | PTFE-Graphite |
| Operating time (s) | 17.0 |
| Voltage | 230 V AC |
| TS max (°C) | 260 |
| TS min (°C) | -20 |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | JC Valves |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN65 - 2''1/2 NA 09 | 316AICG065023120 | S1004015 |
€1,582.49
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN80 - 3'' NA 15 | 316AICG080023130 | S1004016 |
€1,912.93
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN100 - 4'' NA 28 | 316AICG100023150 | S1004017 |
€2,434.64
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN200 - 8'' NA 150 | 316AICG200023210 | S1004020 |
€9,451.73
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN15 - 1/2'' SA 03 | 340AICG015023000 | S1004021 |
€558.99
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN20 - 3/4'' SA 03 | 340AICG020023000 | S1004022 |
€610.01
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN25 - 1'' SA 03 | 340AICG025023000 | S1004023 |
€615.26
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN32 - 1''1/4 SA 05 | 340AICG032023010 | S1004024 |
€890.89
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN40 - 1''1/2 SA 05 | 340AICG040023010 | S1004025 |
€901.69
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN50 - 2'' NA 09 | 340AICG050023120 | S1004026 |
€1,473.36
(excl. btw)
|
add to cart |
